TOSOT ULTRA SINGLE ZONE SYSTEMS (heat down to -22°F)

OUTDOOR MODEL # / DESCRIPTION / INDOOR UNIT (L x H x D) - click for submittal

TOSOT 9K BTU ULTRA TW09HQ3D6DO Outdoor Condenser paired with TW09HQ3D6DI Wall Mounted Indoor Unit (38.2" x 11.8" x 8.9")

TOSOT 12K BTU ULTRA TW12HQ3D6DO Outdoor Condenser paired with TW12HQ3D6DI Wall Mounted Indoor Unit (38.2" x 11.8" x 8.9")

TOSOT 18K BTU ULTRA TW18HQ3D6DO Outdoor Condenser paired with TW18HQ3D6DI Wall Mounted Indoor Unit (42.5" x 12.8" x 9.7")

TOSOT 24K BTU ULTRA TW24HQ3D6DO Outdoor Condenser paired with TW24HQ3D6DI Wall Mounted Indoor Unit (42.5" x 12.8" x 9.7")

TOSOT MULTI ZONE MANHATTAN OUTDOOR UNITS (heat down to -22°F)

MODEL # / DESCRIPTION - click for submittal

TOSOT 18K BTU TM18HMO Multi Manhattan Outdoor Condenser

TOSOT 24K BTU TM24HMO Multi Manhattan Outdoor Condenser

TOSOT 30K BTU TM30HMO Multi Manhattan Outdoor Condenser

TOSOT 36K BTU TM36HMO Multi Manhattan Outdoor Condenser

TOSOT 42K BTU TM42HMO Multi Manhattan Outdoor Condenser

TOSOT INDOOR UNITS (pair w/Multi Zone outdoor units above)

MODEL # / DESCRIPTION / L x H x D

TOSOT 9K BTU TW09AG25A2DI (WIFI) MULTI Zone Wall Mounted Indoor Unit - 32 31/64" x 11 17/32" x 7 23/32"

TOSOT 9K BTU TM09HEDI MULTI Zone Mini Console - 27.5" x 24.0" x 8.5"

TOSOT 9K BTU TM09HFDI MULTI Zone Slim Duct - 29.2" x 7.9" x 25.0"

TOSOT 12K BTU TW12AG25A2DI (WIFI) MULTI Zone Wall Mounted Indoor Unit - 32 31/64" x 11 17/32" x 7 23/32"

TOSOT 12K BTU TM12HEDI MULTI Zone Mini Console - 27.5" x 24.0" x 8.5"

TOSOT 12K BTU TM12HFDI MULTI Zone Slim Duct - 29.2" x 25.0" x 7.9"

TOSOT 18K BTU TW18AG25A2DI (WIFI) MULTI Zone Wall Mounted Indoor Unit - 38 21/32" x 12 1/4" x 8 45/64"

TOSOT 18K BTU TM18HEDI MULTI Zone Mini Console - 27.5" x 24.0" x 8.5"

TOSOT 24K BTU TW24AG25A2DI (WIFI) MULTI Zone Wall Mounted Indoor Unit - 42 21/64" x 13 7/64" x 9 11/16"

A singular pixel.

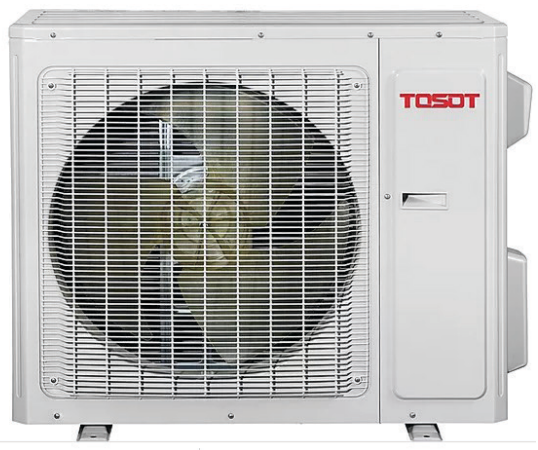

Heat pump unit with a fan and protective grille, labeled 'TOSOT'.

Single Zone Outdoor Unit

White wall-mounted TOSOT air handler with a digital display and control panel.

Indoor Wall Unit

Remote control device with LCD display showing 78°F temperature setting
A white outdoor heat pump unit with a large fan behind a protective grille, branded TOSOT, featuring multiple copper connectors on the side for refrigerant lines.

Multi-Zone Outdoor Unit

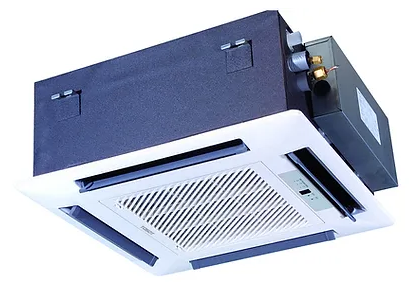

Ceiling-mounted heat pump unit with air vents and control components.

Ceiling Cassette

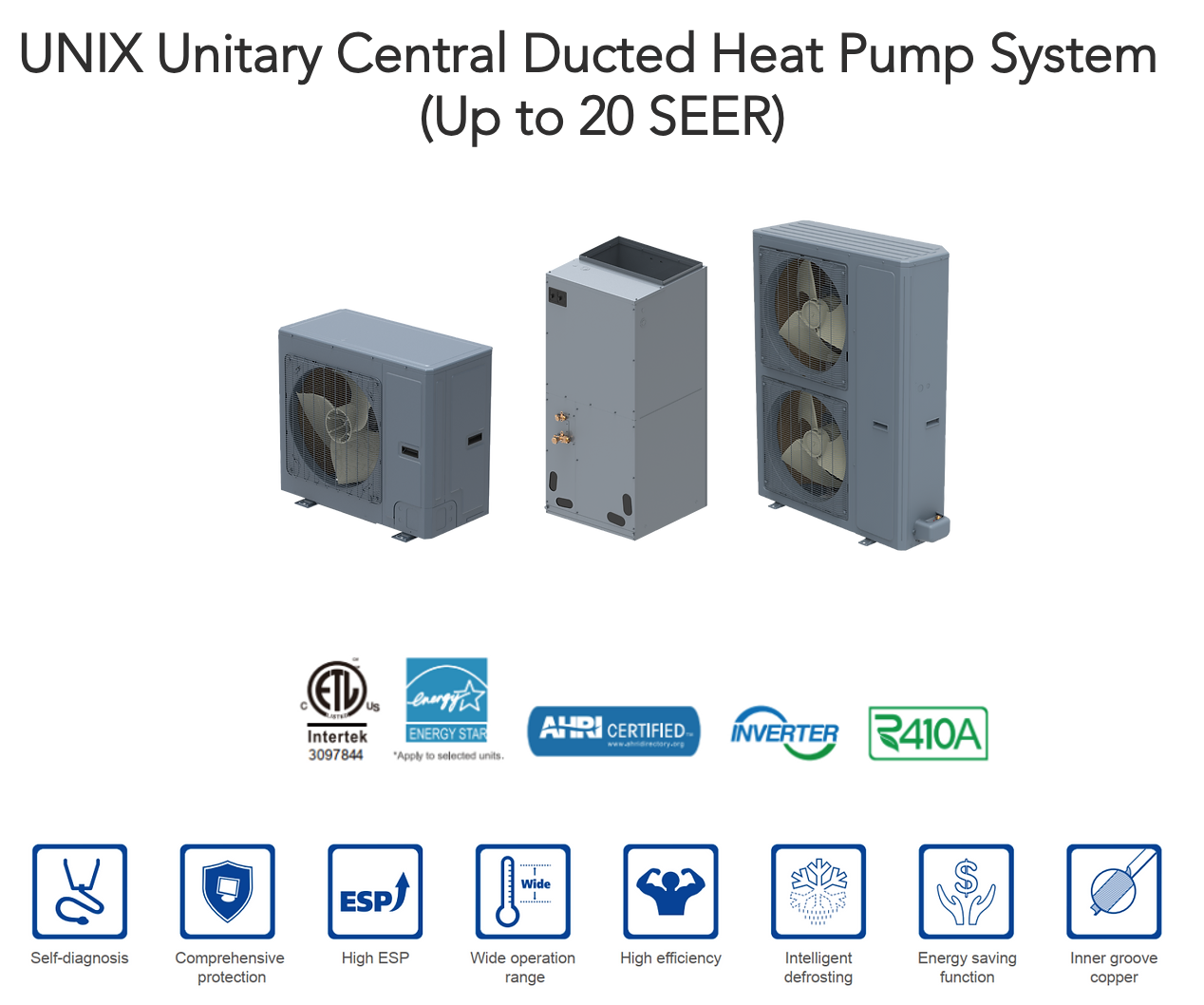

Diagram of a UNIX Unitary Central Ducted Heat Pump System with three units, all featuring dual fans. Logos at the bottom indicate certifications and features, including intertek, energy star, AHRI certified, inverter, and 410A refrigerant. Icons depict self-diagnosis, protection, high energy efficiency and ESP, wide operation range, smart defrosting, energy-saving, and inner copper groove.
Metal industrial machine component with a sloped surface and a cylindrical attachment on the side.

Slim Duct (for ducted systems)

Wall-mounted air handler unit with vents and digital display.

Mini Console Floor Unit

Remote (standard)
